Flat Roof Solar for Homeowners: Roof Warranty and Structural Checklist
Yes, you can install solar on a flat roof, but the panels need to sit on angled racking matched to your roofs membrane, structural capacity, and wind exposure. Laying panels flat kills performance and invites water pooling. The trade-offs are real: slightly higher mounting costs and a mandatory structural check, but also more layout freedom than a pitched roof allows. Before you get quotes, check your roof’s age and membrane warranty, and ask an engineer to confirm your dead-load capacity.
TL;DR:
Most flat roof solar mounts are ballasted systems suitable for TPO and EPDM membranes, but they generally limit tilt angles to around 10 degrees.
Mechanical attachments are necessary in high wind areas or for roofs that cannot support additional dead load, requiring careful flashing and manufacturer approval.
Proper system tilt, row spacing, and layout are crucial to optimize performance, with a 15 degree tilt capturing nearly 95% of the yield of a 35 degree pitched roof.
A thorough roof and structural assessment, including checking membrane age, warranty, and dead-load capacity, is essential before requesting quotes.
Flat roofs facing extreme wind zones or nearing end-of-life should be re-roofed before solar installation to avoid higher long-term costs.
Table of Contents
Flat Roof Solar Mounting Options: Ballasted vs. Mechanically Attached vs. Hybrid
Choosing the right mounting method for your flat roof solar system comes down to three things: what your membrane can tolerate, how much extra weight your roof can carry, and how exposed your property is to wind.

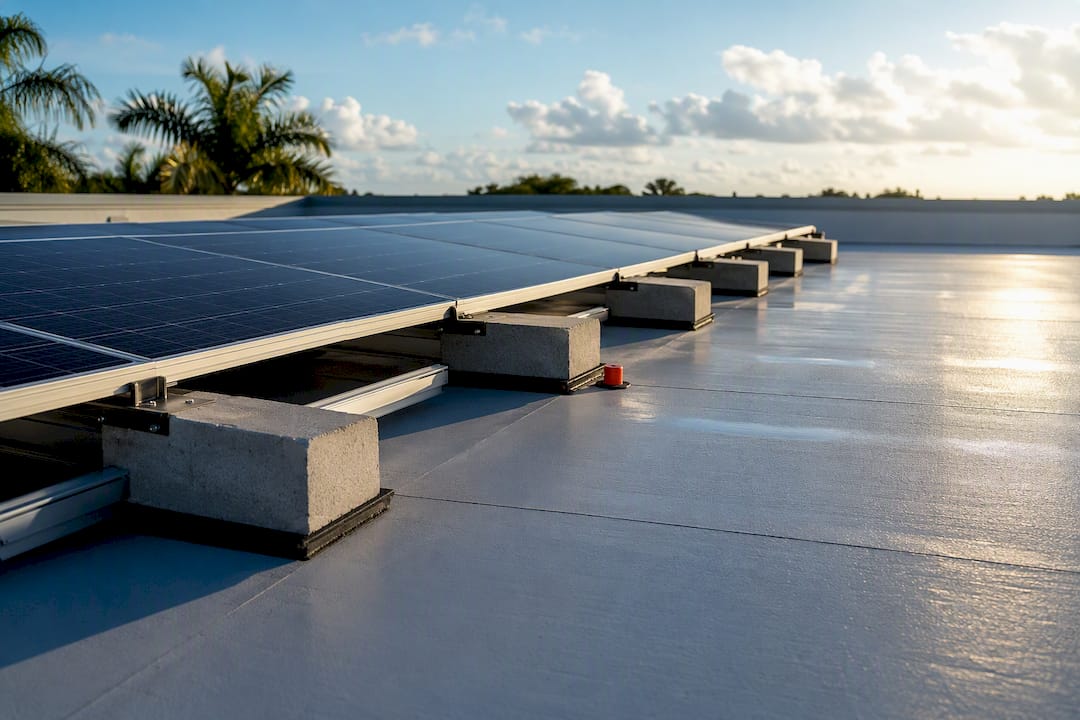

Ballasted systems rest on the roof surface, held down by weight instead of screws. They’re the most common choice for flat roof solar because they avoid punching holes in the membrane, which cuts leak risk and keeps roofing warranties intact. Ballasted racking works well on TPO and EPDM membranes when the roof structure has enough reserve to carry the added weight. The catch: ballasted mounts typically cap tilt angles near 10 degrees, because steeper angles catch more wind and need more ballast to stay put.
Mechanically attached systems bolt directly into the roof deck through the membrane, using flashed penetrations sealed against water intrusion. Installers reach for this method on coastal properties, in High Velocity Hurricane Zones, or on roofs that simply can’t handle much added dead load. The penetrations require manufacturer approval and careful flashing work, so ask your installer for documentation before signing anything.
Hybrid layouts combine both approaches. Ballast handles the interior of the array, where wind loads are lower, and mechanical attachments secure the perimeter, edges, and corners where uplift forces spike. This split exists because wind design standards treat those roof zones very differently, and most flat roof arrays over a certain size end up needing some hybrid detailing to pass engineering review.
Before you commit to a mounting type, ask your installer:
Does this system require membrane penetrations, and if so, does the manufacturer pre-approve them?
Will this voidmy existing roof warranty, or does the roofing manufacturer offer a solar-compatible warranty extension?
What protective pads or separation layers will go between the racking and the membrane?
Pro Tip: Get the racking manufacturer’s warranty language in writing before your roofing warranty gets touched. A verbal assurance from an installer doesn’t hold up if a leak shows up three years later.
Getting Tilt, Spacing, and Orientation Right on a Flat Roof
A flat roof gives you design freedom a pitched roof simply doesn’t offer, and that freedom is where real savings hide, as explained in detail about panele solarne w lampach. Aurora Solar describes a flat roof as an “open canvas” because you can choose orientation and tilt to fit the site instead of being locked into whatever angle the roof happens to have.

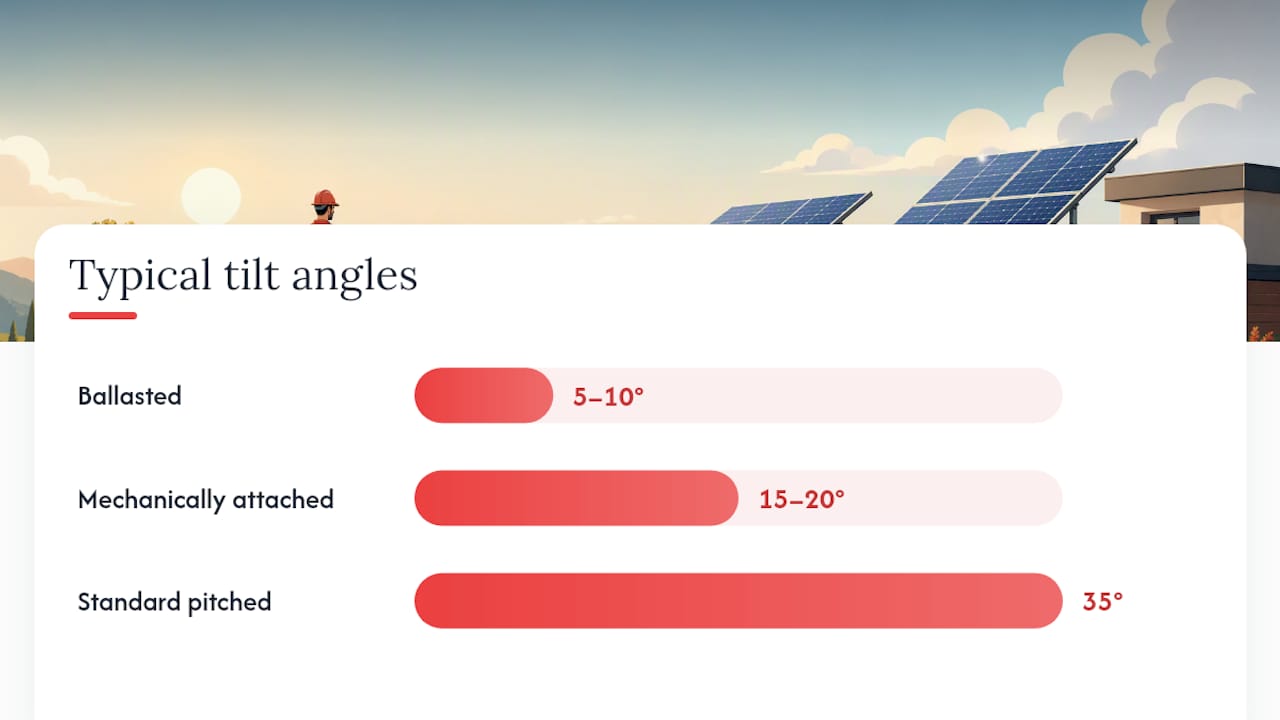

Most flat roof solar arrays land in one of two tilt ranges. Ballasted systems generally sit between 5 and 10 degrees, since anything steeper adds wind resistance and ballast weight fast. Mechanically attached arrays can climb to 15 or 20 degrees because the bolted connections handle the added uplift. The Department of Energy notes that a 15 degree south-facing tilt on a flat roof can capture roughly 95% of the annual yield you’d get from a standard 35 degree pitched-roof install, which means the performance gap most homeowners worry about is smaller than it sounds.
Row spacing is the trade-off nobody mentions until the design phase. Steeper tilt angles cast longer shadows on the row behind them, so installers either space rows farther apart, losing usable roof area, or accept some self-shading losses in winter. A few practical patterns:
Low-tilt, tightly packed rows maximize total panel count and annual kilowatt-hours on space-constrained roofs.
Steeper tilt with wider spacing favors winter production, useful if your utility bills spike in colder months.
East-west split arrays lay panels facing opposite directions in alternating rows, which flattens the daily generation curve and pairs well with battery storage for households prioritizing self-consumption over raw yield.
A well-tilted flat roof array can reach nearly the same annual yield as a standard 35 degree pitched installation, according to Department of Energy guidance. That’s a small enough gap that mounting method and roof condition usually matter more to your final output than tilt angle alone.
Should You Re-Roof Before Going Solar?
Roof age is the question that trips up more homeowners than any wiring detail. If your membrane has less than 5 to 10 years of service life left, installing solar now often costs you more in the long run. Removing and reinstalling an array to accommodate a re-roof isn’t cheap, and the Department of Energy points out that re-roofing before solar installation is usually the smarter economic move when a roof is already near the end of its life.
Here’s a short sequence to work through before you request quotes:
Pull your roof’s install date and warranty documents. Most commercial-grade membranes carry 15 to 20 year manufacturer warranties, but that clock started the day the roof went on, not today.
Confirm penetration rules with the manufacturer. Some membrane warranties void automatically if anything punctures the surface without pre-approval, which pushes you toward ballasted mounting.
Ask your roofer for a remaining-life estimate. A roofing contractor who inspects the membrane in person can tell you if you have 3 years left or 15.
Loop in the PV installer before finalizing the roofing scope. Bringing the racking design into the conversation early is often the single biggest factor in keeping your roof warranty intact and avoiding disputes down the road.
Get both quotes side by side. Compare the cost of re-roofing first versus removing and reinstalling panels in 5 years. The math usually favors re-roofing first if you’re within that window.
If your roof was replaced recently and carries a long warranty runway, you’re clear to move forward with solar now.
Structural and Wind Checks: What an Engineer Verifies
Every flat roof solar design starts with three numbers: how much weight your roof deck can carry, your site’s design wind speed, and what your membrane warranty allows. Racking design can’t proceed responsibly without all three.
A ballasted array typically adds about 8 to 15 pounds per square foot, roughly 30 to 45 kilograms per square meter, of distributed dead load across the roof surface. That number sounds modest, but older roofs, especially ones with multiple existing recover layers, sometimes don’t have that reserve capacity to spare. This is why a structural engineer’s sign off matters more on flat roof solar projects than on most pitched-roof jobs.
Wind uplift adds another layer of complexity. ASCE 7 wind-load standards divide flat roofs into interior, edge, and corner zones, and uplift forces at the edges and corners run significantly higher than in the field of the roof. That’s the entire reason hybrid mounting exists: ballast handles the calmer interior zone, while mechanical attachments secure the perimeter where wind wants to peel the array off the roof.
Coastal properties and anything inside a High Velocity Hurricane Zone almost always need mechanical attachment at minimum around the perimeter, sometimes throughout. Ballast alone typically isn’t sufficient once you’re dealing with serious wind exposure.
Ask for a written structural report specifying remaining dead-load capacity in psf.
Ask which uplift zone classifications apply to your specific roof geometry.
Ask whether the racking design has been engineered for your county’s design wind speed, not a generic average.
Pro Tip: Request the engineer’s report before the racking design gets finalized, not after. Changing dead-load numbers mid-design can force a full re-layout and delay your permit.
What Flat Roof Solar Costs and How Long It Takes
Flat roof solar installs generally run more expensive than pitched-roof jobs, and the gap comes almost entirely from mounting hardware. EnergySage notes that flat-roof installs cost more upfront due to racking and ballast requirements, but the layout flexibility can offset that premium over the system’s lifetime, and the work is often safer for installers than steep pitched-roof jobs.
A typical flat roof solar project moves through these stages:
Site survey and roof inspection — confirming membrane type, age, and rough dimensions.
Structural engineering review — verifying dead-load capacity and wind-zone classification.
Permitting — jurisdiction-dependent, often the longest single step.
Equipment procurement — racking, ballast trays, and panels ordered to spec.
Installation — usually completed faster than penetrating systems since ballasted racking doesn’t require extensive flashing work.
Inspection and commissioning — final utility and code sign-off before the system goes live.
The annual yield of a well-tilted flat roof array is roughly comparable to that of a 35 degree south-facing pitched install, based on Department of Energy figures cited earlier. East-west split layouts trade some of that peak yield for a flatter, more useful daily generation curve.
When comparing quotes, make sure each one itemizes the structural survey fee, scaffold or fall-protection costs, membrane protection pads, and permit fees separately. Bundled numbers make it hard to tell where your money is actually going.
Keeping Your Flat Roof Solar System and Membrane Healthy
Tilted panels shed dirt and debris far better than flat-mounted ones, since rain actually runs off instead of pooling on the glass. Most flat roof solar owners in drier climates only need occasional manual cleaning, unlike flat-mounted systems that accumulate grime in the low points.
Inspect ballast pads and trays annually, and always after major storms, checking for shifting or cracking.
Check flashings on any mechanically attached sections for sealant wear or lifting.
Clear roof drains near the array, since panel rows can redirect runoff toward drain points and cause unexpected buildup.
Keep a walkable access path clear of racking, so maintenance crews aren’t stepping on panels to reach the far side of the array.
Photograph the array and roof condition every service visit. That record-keeping protects you if a warranty dispute ever comes up.
Your Pre-Quote Checklist for a Flat Roof Solar Estimate
Before an installer walks your roof, gather a few basics: your roof’s install date, membrane type (TPO, EPDM, or modified bitumen), photos of the parapet walls and drains, and rough square footage. Having these ready cuts wasted site-visit time.
Florida Solar East builds flat roof solar projects around exactly this process: a site survey that documents your membrane and structure, coordination with your roofing contractor to protect existing warranties, and a mounting recommendation, ballasted, mechanical, or hybrid, based on your actual wind exposure and dead-load numbers. Financing conversations, including federal tax credit eligibility, happen during the same estimate visit.
What you’ll get from a Florida Solar East site estimate: a written structural coordination plan, a specific mounting recommendation for your roof type, and clear notes on how the proposed racking interacts with your existing roof warranty.

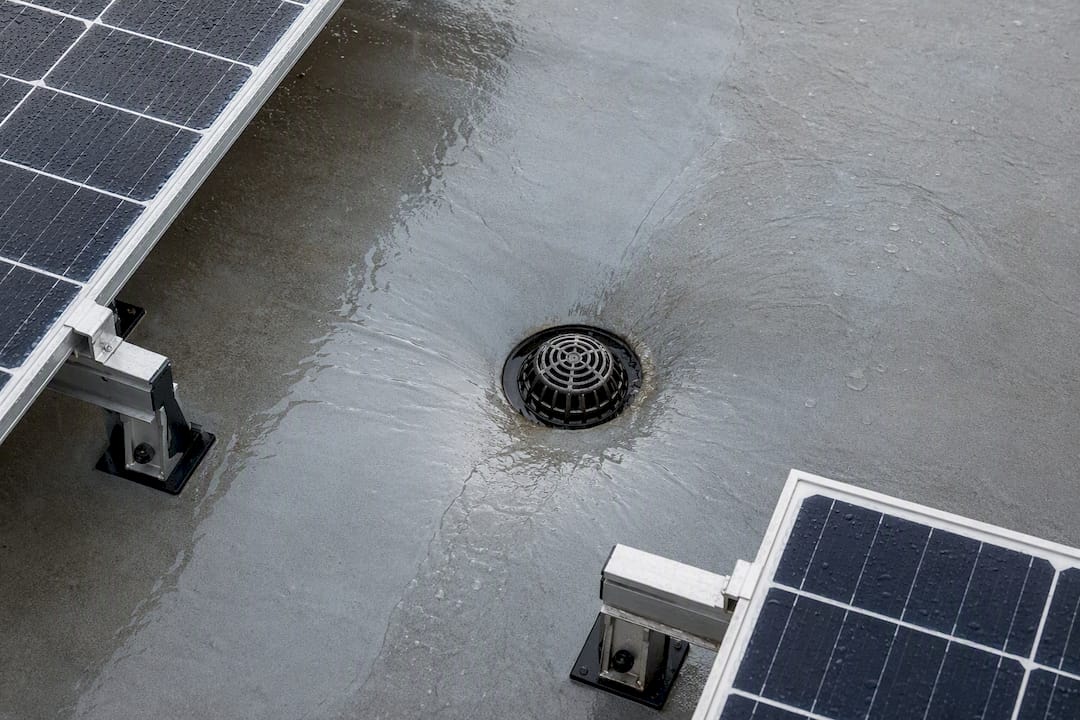

Drainage and Water Pooling on Flat Roof Solar Arrays
Standing water is the single biggest threat to a flat roof, and adding solar changes how water moves across the surface. Panel rows and racking legs can redirect runoff toward unexpected low points, sometimes concentrating water near roof drains that weren’t designed for that volume.
Ballasted racking systems typically use raised feet or trays that lift the panel frame slightly off the membrane surface, letting water pass underneath rather than damming against the hardware. Poorly designed layouts, though, can create dams where water backs up behind a row of ballast blocks, especially on roofs with marginal existing slope toward the drains.
A few design details prevent most drainage problems before they start:
Racking layouts should route around existing drain locations with clear buffer space, not crowd right up to them.
Ballast trays and pads need slots or gaps that let water flow beneath the array instead of pooling against the base.
Roofs with known low spots or “bird baths” should get those areas addressed during re-roofing or recovery, not worked around during the solar install.
Standing water sitting against ballast blocks for extended periods can accelerate membrane wear at the contact points, which is part of why manufacturers specify protective pads between ballast and roof surface. Persistent pooling near an array is worth flagging to your roofer immediately, since it often signals a drainage issue that existed before solar went on the roof and will only get harder to fix once the array is in place.
Shading Problems Unique to Flat Roofs and How to Fix Them
Flat roofs create shading challenges pitched roofs simply don’t have, mostly because the panels themselves become the shading source. Row-to-row self-shading happens when one tilted row casts a shadow on the row behind it, especially in winter when the sun sits lower on the horizon.
Rooftop equipment adds a second layer of complexity. HVAC units, vent stacks, and parapet walls that don’t exist on most pitched roofs can throw shadows across a flat roof array at different times of day. A good installer walks the roof at multiple points to map exactly where these obstructions cast shade across the seasons, not just at noon on a clear day.
The fixes are mostly about row spacing and layout, not the panels themselves:
Increasing the gap between rows reduces self-shading but also reduces the total number of panels the roof can hold, so it’s a genuine trade-off, not a free upgrade.
Positioning rows to avoid the shadow paths of HVAC units and parapets sometimes means an asymmetric layout instead of a uniform grid.
East-west split arrays can actually reduce the shading penalty compared to all-south-facing rows, since the panels aren’t stacked in a way that creates long shadow lines across neighboring rows.
Micro-inverters or power optimizers on individual panels also limit the production hit from partial shading, since one shaded panel won’t drag down the output of an entire string the way it can with a traditional string inverter setup.
Which Panel Types Work Best on a Flat Roof
Framed panels are the standard choice for tilted flat roof racking, and for good reason. The aluminum frame gives ballasted or mechanically attached mounts a rigid edge to clamp onto, and framed modules handle the wind loads flat roof installations typically face better than frameless alternatives.
Frameless panels exist and shed water more cleanly since there’s no frame lip to trap debris or moisture, but they need specialized mounting hardware and aren’t as widely supported by flat roof racking manufacturers. They tend to show up more in commercial installations than residential flat roof solar projects.
Flexible, thin-film panels get discussed online more than they actually get installed. They can be adhered directly to a roof surface without racking, which sounds appealing for a flat roof. But laying panels flat, or nearly flat, sacrifices significant annual output compared to tilted framed panels, and flexible modules generally carry lower efficiency ratings and shorter warranty terms than standard framed modules built for Florida conditions. For most homeowners chasing real energy savings rather than a low-profile look, tilted framed panels on proper racking remain the stronger choice.
Building Codes and Permitting for Flat Roof Solar
Permitting a flat roof solar system usually takes longer than a pitched-roof equivalent, mostly because the structural review carries more weight. Building departments want to see documentation confirming the roof can handle the added ballast or attachment loads, along with wind-load calculations tied to your specific site.
Local jurisdictions vary in how strictly they enforce these requirements, but most now reference the same core standard: ASCE 7 wind-load provisions define the interior, edge, and corner uplift zones your racking design has to satisfy. Permit reviewers typically ask for the engineer’s stamped structural report alongside the racking manufacturer’s specifications before issuing approval.
Coastal counties and High Velocity Hurricane Zones add another layer of scrutiny. Expect additional wind-uplift documentation and, in some cases, product approval numbers for the specific racking system being installed. This isn’t paperwork for paperwork’s sake. It exists because flat roof arrays in these zones face genuinely higher uplift forces, and skipping the review invites both permit delays and, worse, a system that fails in a storm.
Homeowners can shorten the permitting timeline by having the structural report and manufacturer documentation ready before the initial permit submission rather than scrambling to produce it after a reviewer asks. An installer familiar with your specific county’s requirements is worth more here than one simply offering the lowest quote, since permit rejections cost far more time than they save.
Fixed Tilt vs. Adjustable Tilt: Which Performs Better on a Flat Roof
Fixed-tilt racking is the standard for residential flat roof solar, and for most homeowners it’s also the more sensible choice. Once installed, the angle doesn’t change, which keeps the racking simpler, cheaper, and far less prone to mechanical failure than moving parts sitting on a rooftop exposed to wind and weather year-round.
Adjustable tilt systems let you manually change the panel angle a few times a year, steeper in winter to catch a lower sun, flatter in summer. In theory, this squeezes out a few extra percentage points of annual production by better matching the sun’s seasonal path. In practice, the gains rarely justify the added cost and mechanical complexity for residential systems, since most homeowners don’t reliably re-adjust the racking on schedule anyway.
The bigger performance lever on a flat roof isn’t fixed versus adjustable, it’s getting the fixed tilt angle right in the first place. A well-chosen 10 to 20 degree fixed tilt, sized to the specific roof and wind exposure, captures nearly all of the seasonal benefit an adjustable system promises, without the added moving parts and maintenance burden. For commercial flat roof arrays with large open areas and staff on-site regularly, adjustable tilt sometimes pencils out differently, but for most residential flat roof solar projects, a properly engineered fixed-tilt system remains the more practical, more reliable choice.
Quick Decision Rules for Flat Roof Solar
A flat roof is a strong candidate for solar when the membrane has real years left on its warranty, the structure has dead-load reserve to spare, and the site isn’t fighting extreme wind exposure. Delay only makes sense when your roof is near the end of its life or your warranty documentation is missing entirely.
If you take away one thing from all this: get a roof-warranty confirmation and a structural dead-load check before you compare final quotes. Everything else, tilt angle, mounting type, row spacing, gets easier to decide once those two numbers are in hand.
— Ronnie
Get a Free Flat Roof Solar Estimate From Florida Solar East
Florida Solar East handles the parts of flat roof solar that trip up DIY research: coordinating structural checks, choosing membrane-friendly mounting, and matching racking design to your roof’s actual wind exposure instead of a generic template.
A free site estimate includes a roof survey, a mounting recommendation suited to your membrane type, and a walkthrough of financing options, including federal tax credit support that can offset a meaningful share of your project cost. If your property also has a pool, ask about bundling solar pool heating into the same visit since the site survey covers both. Ready to see what your roof can support? Request your free solar estimate and a Florida Solar East representative will schedule your site visit.
